Kategória produktu: Adaptéry pre 37stupňové svetelné zdroje SAE
Materiál: uhlíková oceľ, nehrdzavejúca oceľ alebo zliatina medi

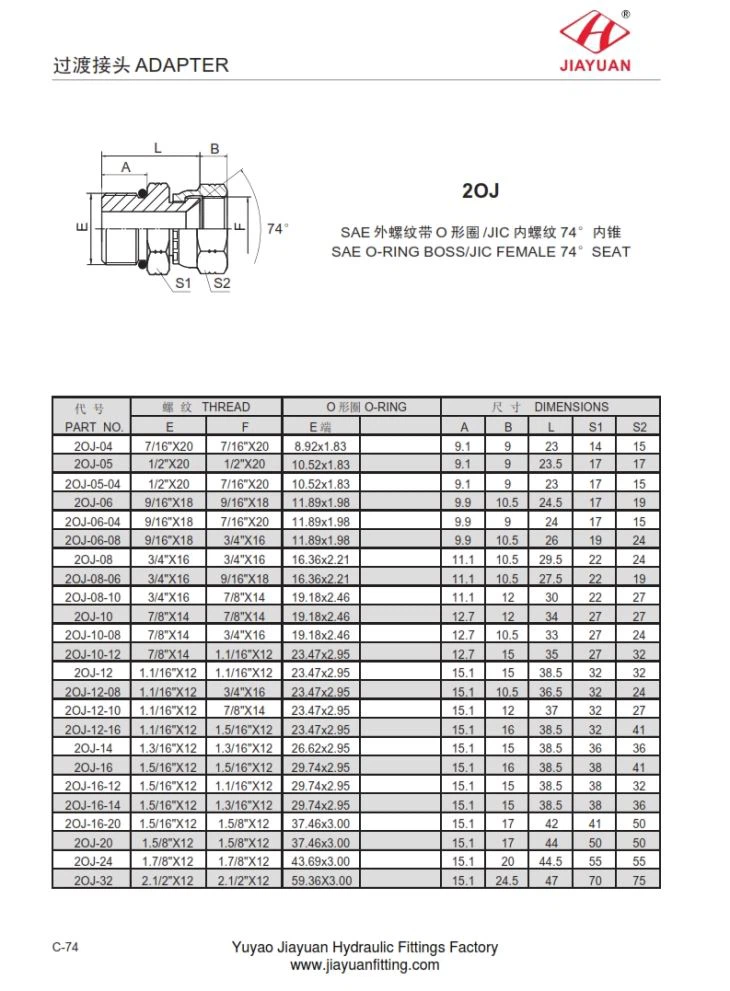

2OJ SAE O-RING BOSS / JIC DÁMSKE 74 ° SEDADLO Rozmerový graf nasledovne:
PAR T NIE . | THREA D | O-RIN G | ROZMER S | ||||||
E | F | E |
| B | L | S 1 | S 2 | ||
2OJ-0 4 | 7/16 "X2 0 | 7/16 "X2 0 | 8,92 x 1,8 3 | 9. 1 | 9 | 2 3 | 1 4 | 1 5 | |
2OJ-0 5 | 1/2 "X2 0 | 1/2 "X2 0 | 10,52 x 1,8 3 | 9. 1 | 9 | 23. 5 | 1 7 | 1 7 | |
2OJ-05-0 4 | 1/2 "X2 0 | 7/16 "X2 0 | 10,52 x 1,8 3 | 9. 1 | 9 | 2 3 | 1 7 | 1 5 | |
2OJ-0 6 | 9/16 "X1 8 | 9/16 "X1 8 | 11,89 x 1,9 8 | 9. 9 | 10. 5 | 24. 5 | 1 7 | 1 9 | |
2OJ-06-0 4 | 9/16 "X1 8 | 7/16 "X2 0 | 11,89 x 1,9 8 | 9. 9 | 9 | 2 4 | 1 7 | 1 5 | |
2OJ-06-0 8 | 9/16 "X1 8 | 3/4 "X1 6 | 11,89 x 1,9 8 | 9. 9 | 10. 5 | 2 6 | 1 9 | 2 4 | |
2OJ-0 8 | 3/4 "X1 6 | 3/4 "X1 6 | 16,36x2,2 1 | 11. 1 | 10. 5 | 29. 5 | 2 2 | 2 4 | |
2OJ-08-0 6 | 3/4 "X1 6 | 9/16 "X1 8 | 16,36x2,2 1 | 11. 1 | 10. 5 | 27. 5 | 2 2 | 1 9 | |
2OJ-08-1 0 | 3/4 "X1 6 | 7/8 "X1 4 | 19,18x2,4 6 | 11. 1 | 1 2 | 3 0 | 2 2 | 2 7 | |
2OJ-1 0 | 7/8 "X1 4 | 7/8 "X1 4 | 19,18x2,4 6 | 12. 7 | 1 2 | 3 4 | 2 7 | 2 7 | |
2OJ-10-0 8 | 7/8 "X1 4 | 3/4 "X1 6 | 19,18x2,4 6 | 12. 7 | 10. 5 | 3 3 | 2 7 | 2 4 | |
2OJ-10-1 2 | 7/8 "X1 4 | 1,1 / 16 "X1 2 | 23,47x2,9 5 | 12. 7 | 1 5 | 3 5 | 2 7 | 3 2 | |
2OJ-1 2 | 1,1 / 16 "X1 2 | 1,1 / 16 "X1 2 | 23,47x2,9 5 | 15. 1 | 1 5 | 38. 5 | 3 2 | 3 2 | |
2OJ-12-0 8 | 1,1 / 16 "X1 2 | 3/4 "X1 6 | 23,47x2,9 5 | 15. 1 | 10. 5 | 36. 5 | 3 2 | 2 4 | |
2OJ-12-1 0 | 1,1 / 16 "X1 2 | 7/8 "X1 4 | 23,47x2,9 5 | 15. 1 | 1 2 | 3 7 | 3 2 | 2 7 | |
2OJ-12-1 6 | 1,1 / 16 "X1 2 | 1,5 / 16 "X1 2 | 23,47x2,9 5 | 15. 1 | 1 6 | 38. 5 | 3 2 | 4 1 | |
2OJ-1 4 | 1,3 / 16 "X1 2 | 1,3 / 16 "X1 2 | 26,62x2,9 5 | 15. 1 | 1 5 | 38. 5 | 3 6 | 3 6 | |
2OJ-1 6 | 1,5 / 16 "X1 2 | 1,5 / 16 "X1 2 | 29,74 x 2,9 5 | 15. 1 | 1 6 | 38. 5 | 3 8 | 4 1 | |
2OJ-16-1 2 | 1,5 / 16 "X1 2 | 1,1 / 16 "X1 2 | 29,74 x 2,9 5 | 15. 1 | 1 5 | 38. 5 | 3 8 | 3 2 | |
2OJ-16-1 4 | 1,5 / 16 "X1 2 | 1,3 / 16 "X1 2 | 29,74 x 2,9 5 | 15. 1 | 1 5 | 38. 5 | 3 8 | 3 6 | |
2OJ-16-2 0 | 1,5 / 16 "X1 2 | 1,5 / 8 "X1 2 | 37,46x3,0 0 | 15. 1 | 1 7 | 4 2 | 4 1 | 5 0 | |
2OJ-2 0 | 1,5 / 8 "X1 2 | 1,5 / 8 "X1 2 | 37,46x3,0 0 | 15. 1 | 1 7 | 4 4 | 5 0 | 5 0 | |
2OJ-2 4 | 1,7 / 8 "X1 2 | 1,7 / 8 "X1 2 | 43,69x3,0 0 | 15. 1 | 2 0 | 44. 5 | 5 5 | 5 5 | |
2OJ-3 2 | 2,1 / 2 "X1 2 | 2,1 / 2 "X1 2 | 59,36 X 3,0 | 15. 1 | 24. 5 | 4 7 | 7 0 | 7 5 | |
