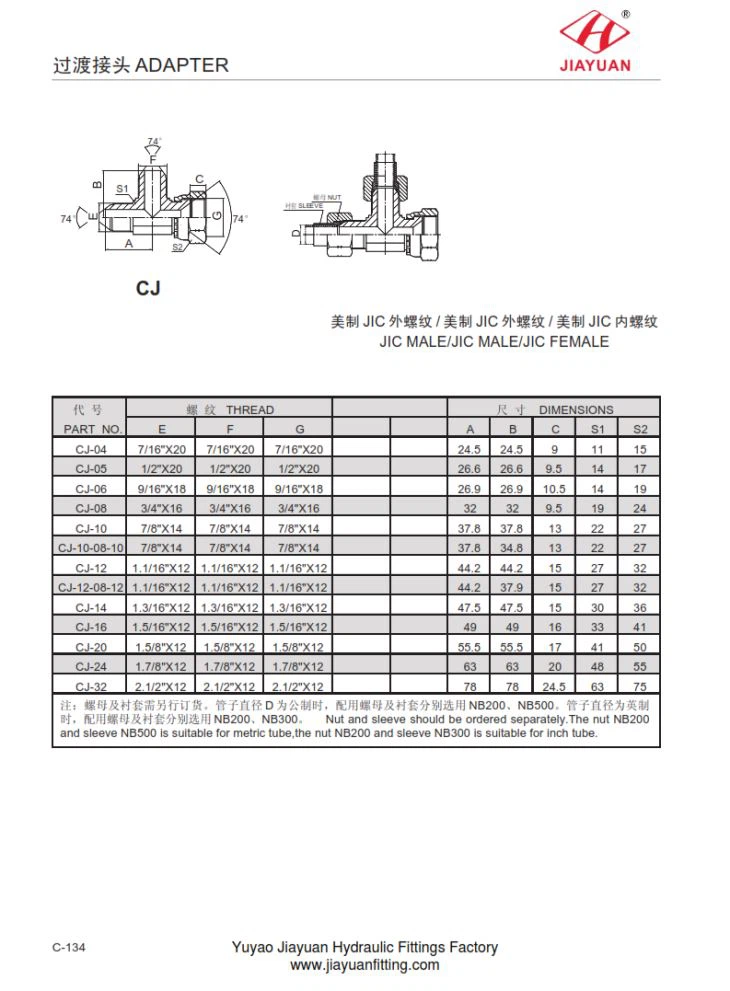

CJ JIC muž/JIC muž/JIC žena veľkosť grafu takto:
ParT nie. | ŽIVOTD | DimenzieS | ||||||
E | F | G | A | B | C | S1 | S2 | |
CJ-04 | 7/16 "x20 | 7/16 "x20 | 7/16 "x20 | 24.5 | 24.5 | 9 | 11 | 15 |
CJ-05 | 1/2 "x20 | 1/2 "x20 | 1/2 "x20 | 26.6 | 26.6 | 9.5 | 14 | 17 |
CJ-06 | 9/16 "X18 | 9/16 "X18 | 9/16 "X18 | 26.9 | 26.9 | 10.5 | 14 | 19 |
CJ-08 | 3/4 "X16 | 3/4 "X16 | 3/4 "X16 | 32 | 32 | 9.5 | 19 | 24 |
CJ-10 | 7/8 "X14 | 7/8 "X14 | 7/8 "X14 | 37.8 | 37.8 | 13 | 22 | 27 |
CJ-10-08-10 | 7/8 "X14 | 7/8 "X14 | 7/8 "X14 | 37.8 | 34.8 | 13 | 22 | 27 |
CJ-12 | 1.1/16 "X12 | 1.1/16 "X12 | 1.1/16 "X12 | 44.2 | 44.2 | 15 | 27 | 32 |
CJ-12-08-12 | 1.1/16 "X12 | 1.1/16 "X12 | 1.1/16 "X12 | 44.2 | 37.9 | 15 | 27 | 32 |
CJ-14 | 1.3/16 "X12 | 1.3/16 "X12 | 1.3/16 "X12 | 47.5 | 47.5 | 15 | 30 | 36 |
CJ-16 | 1.5/16 "X12 | 1.5/16 "X12 | 1.5/16 "X12 | 49 | 49 | 16 | 33 | 41 |
CJ-20 | 1.5/8 "X12 | 1.5/8 "X12 | 1.5/8 "X12 | 55.5 | 55.5 | 17 | 41 | 50 |
CJ-24 | 1.7/8 "X12 | 1.7/8 "X12 | 1.7/8 "X12 | 63 | 63 | 20 | 48 | 55 |
CJ-32 | 2.1/2 "X12 | 2.1/2 "X12 | 2.1/2 "X12 | 78 | 78 | 24.5 | 63 | 75 |
