Kategória produktu: Adaptéry pre 37stupňové svetelné zdroje SAE
Materiál: uhlíková oceľ, nehrdzavejúca oceľ alebo zliatina medi.

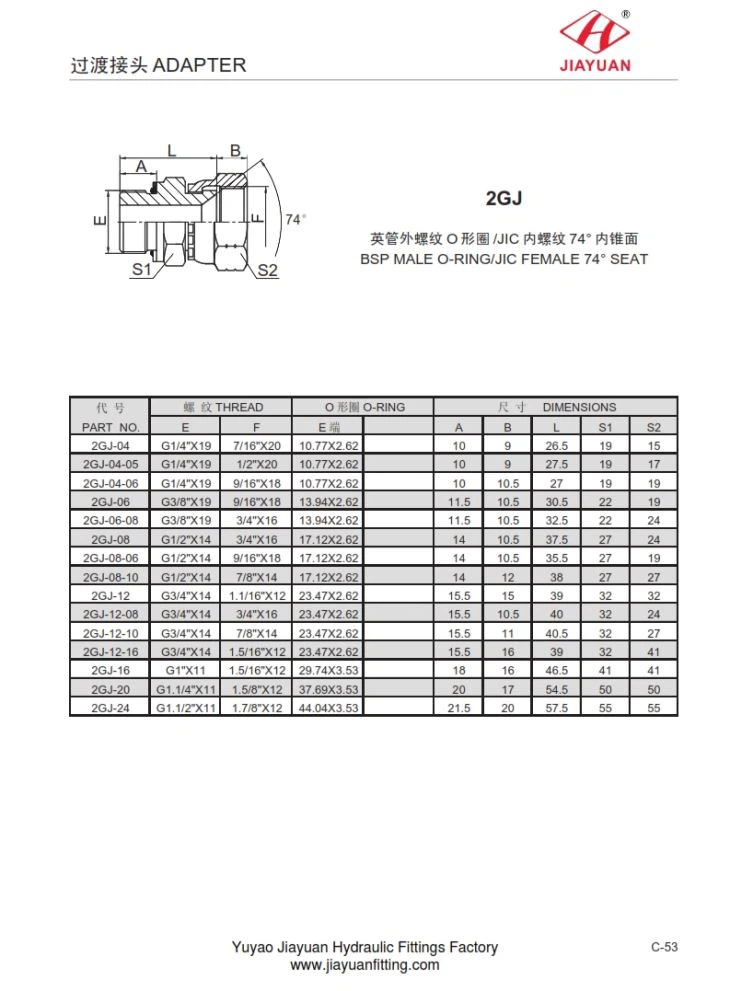

2GJ BSP MALE O-RING / JIC DÁMSKE 74 ° SEDADLO Rozmerový graf nasledovne:
PA RT N O. | T HR EA D | O- RING | DIM E N S I O NS | ||||||
E | F | E |
| B | L | S 1 | S 2 | ||
2 GJ- 04 | G 1/4 " X 19 | 7/16 " X 20 | 10,77 X 2,62 | 10 | 9 | 26.5 | 19 | 15 | |
2 GJ-04-05 | G 1/4 " X 19 | 1/2 " X 20 | 10,77 X 2,62 | 10 | 9 | 27.5 | 19 | 17 | |
2 GJ-04-06 | G 1/4 " X 19 | 9/16 " X 18 | 10,77 X 2,62 | 10 | 10.5 | 27 | 19 | 19 | |
2 GJ- 06 | G 3/8 " X 19 | 9/16 " X 18 | 13,94 X 2,62 | 11.5 | 10.5 | 30.5 | 22 | 19 | |
2 GJ- 06 - 08 | G 3/8 " X 19 | 3/4 " X 16 | 13,94 X 2,62 | 11.5 | 10.5 | 32.5 | 22 | 24 | |
2 GJ- 08 | G 1/2 " X 14 | 3/4 " X 16 | 17,12 X 2,62 | 14 | 10.5 | 37.5 | 27 | 24 | |
2 GJ- 08 - 06 | G 1/2 " X 14 | 9/16 " X 18 | 17,12 X 2,62 | 14 | 10.5 | 35.5 | 27 | 19 | |
2 GJ- 08 - 10 | G 1/2 " X 14 | 7/8 " X 14 | 17,12 X 2,62 | 14 | 12 | 38 | 27 | 27 | |
2 GJ- 12 | G 3/4 " X 14 | 1,1 / 16 " X 12 | 23,47 X 2,62 | 15.5 | 15 | 39 | 32 | 32 | |
2 GJ- 12 - 08 | G 3/4 " X 14 | 3/4 " X 16 | 23,47 X 2,62 | 15.5 | 10.5 | 40 | 32 | 24 | |
2 GJ- 12 - 10 | G 3/4 " X 14 | 7/8 " X 14 | 23,47 X 2,62 | 15.5 | 11 | 40.5 | 32 | 27 | |
2 GJ-12-16 | G 3/4 " X 14 | 1,5 / 16 " X12 | 23,47 X 2,62 | 15.5 | 16 | 39 | 32 | 41 | |
2 GJ- 16 | G 1 " X 11 | 1,5 / 16 " X12 | 29,74 X 3,53 | 18 | 16 | 46.5 | 41 | 41 | |
2 GJ- 20 | G 1,1 / 4 " X 11 | 1,5 / 8 " X12 | 37,69 X 3,53 | 20 | 17 | 54.5 | 50 | 50 | |
2 GJ- 24 | G 1,1 / 2 " X 11 | 1,7 / 8 " X 12 | 44,04 x 3,53 | 21.5 | 20 | 57.5 | 55 | 55 | |
