Kategória produktu: Adaptéry hydraulických tvaroviek JIC na pripojenie elektrónky k elektrónke
Norma produktu: ISO 8434-2, SAE J514.
Materiál: uhlíková oceľ, nehrdzavejúca oceľ alebo zliatina medi.
Koniec rúrky JIC k inému koncovému pripojeniu nasledovne: BSP Uzatváracie tesnenie typu E, G, H, tvarovky ISO 6149, tvarovky JIS B2351, tvarovky ISO 11926 a SAE J1926 ORB, tvarovky DIN 3852 a ISO 1179, tvarovky ISO 9974 atď.

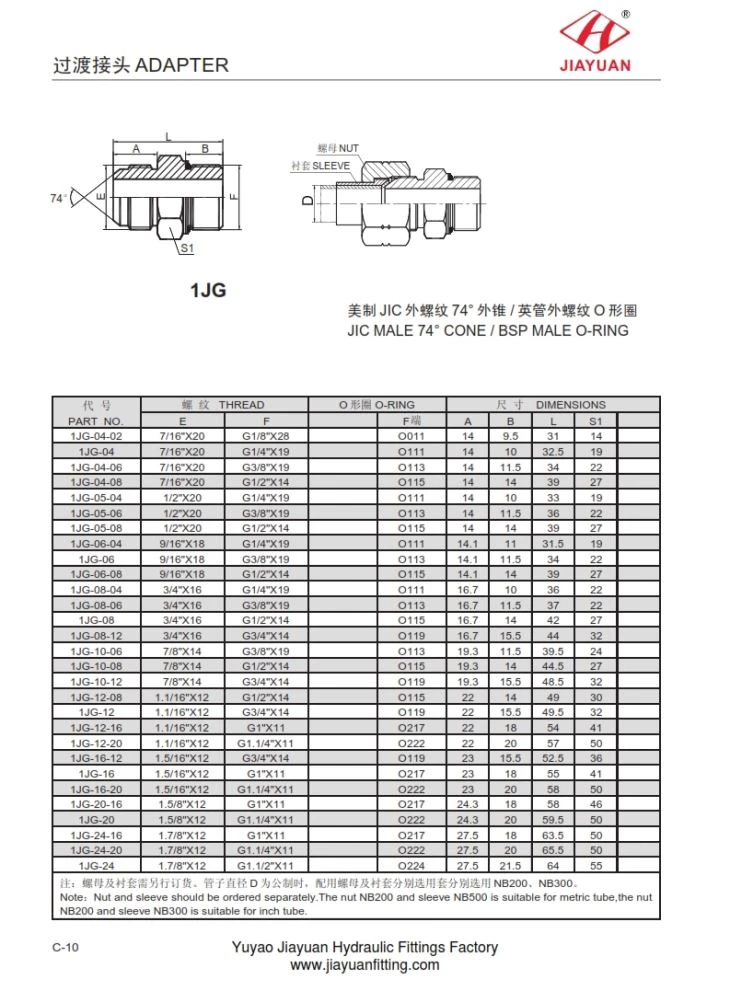

1JG JIC PÁNSKE 74 ° KOTÚČ / BSP MALE O-RING Rozmerová tabuľka takto:
PA RT N O. | T HR EA D | O- RING | DIM E N S I O NS | ||||||
E | F | F |
| B | L | S 1 | |||
1 JG-04-2 | 7/16 " X 20 | G 1/8 " X 28 | O 011 | 14 | 9.5 | 31 | 14 | ||
1 JG- 04 | 7/16 " X 20 | G 1/4 " X 19 | O 111 | 14 | 10 | 32.5 | 19 | ||
1 JG-04-06 | 7/16 " X 20 | G 3/8 " X 19 | O 113 | 14 | 11.5 | 34 | 22 | ||
1 JG- 04 - 08 | 7/16 " X 20 | G 1/2 " X 14 | O 115 | 14 | 14 | 39 | 27 | ||
1 JG- 05 - 04 | 1/2 " X 20 | G 1/4 " X 19 | O 111 | 14 | 10 | 33 | 19 | ||
1 JG- 05 - 06 | 1/2 " X 20 | G 3/8 " X 19 | O 113 | 14 | 11.5 | 36 | 22 | ||
1 JG- 05 - 08 | 1/2 " X 20 | G 1/2 " X 14 | O 115 | 14 | 14 | 39 | 27 | ||
1 JG- 06 - 04 | 9/16 " X 18 | G 1/4 " X 19 | O 111 | 14.1 | 11 | 31.5 | 19 | ||
1 JG- 06 | 9/16 " X 18 | G 3/8 " X 19 | O 113 | 14.1 | 11.5 | 34 | 22 | ||
1 JG- 06 - 08 | 9/16 " X 18 | G 1/2 " X 14 | O 115 | 14.1 | 14 | 39 | 27 | ||
1 JG- 08 - 04 | 3/4 " X 16 | G 1/4 " X 19 | O 111 | 16.7 | 10 | 36 | 22 | ||
1 JG- 08 - 06 | 3/4 " X 16 | G 3/8 " X 19 | O 113 | 16.7 | 11.5 | 37 | 22 | ||
1 JG- 08 | 3/4 " X 16 | G 1/2 " X 14 | O 115 | 16.7 | 14 | 42 | 27 | ||
1 JG- 08 - 12 | 3/4 " X 16 | G 3/4 " X 14 | O 119 | 16.7 | 15.5 | 44 | 32 | ||
1 JG- 10 - 06 | 7/8 " X 14 | G 3/8 " X 19 | O 113 | 19.3 | 11.5 | 39.5 | 24 | ||
1 JG- 10 - 08 | 7/8 " X 14 | G 1/2 " X 14 | O 115 | 19.3 | 14 | 44.5 | 27 | ||
1 JG- 10 - 12 | 7/8 " X 14 | G 3/4 " X 14 | O 119 | 19.3 | 15.5 | 48.5 | 32 | ||
1 JG- 12 - 08 | 1,1 / 16 " X 12 | G 1/2 " X 14 | O 115 | 22 | 14 | 49 | 30 | ||
1 JG- 12 | 1,1 / 16 " X 12 | G 3/4 " X 14 | O 119 | 22 | 15.5 | 49.5 | 32 | ||
1 JG- 12 - 16 | 1,1 / 16 " X 12 | G 1 " X 11 | O 217 | 22 | 18 | 54 | 41 | ||
1 JG- 12 - 20 | 1,1 / 16 " X 12 | G 1,1 / 4 " X 11 | O 222 | 22 | 20 | 57 | 50 | ||
1 JG- 16 - 12 | 1,5 / 16 " X12 | G 3/4 " X 14 | O 119 | 23 | 15.5 | 52.5 | 36 | ||
1 JG- 16 | 1,5 / 16 " X12 | G 1 " X 11 | O 217 | 23 | 18 | 55 | 41 | ||
1 JG- 16 - 20 | 1,5 / 16 " X12 | G 1,1 / 4 " X 11 | O 222 | 23 | 20 | 58 | 50 | ||
1 JG- 20 - 16 | 1,5 / 8 " X12 | G 1 " X 11 | O 217 | 24.3 | 18 | 58 | 46 | ||
1 JG- 20 | 1,5 / 8 " X12 | G 1,1 / 4 " X 11 | O 222 | 24.3 | 20 | 59.5 | 50 | ||
1 JG- 24 - 16 | 1,7 / 8 " X 12 | G 1 " X 11 | O 217 | 27.5 | 18 | 63.5 | 50 | ||
1 JG- 24 - 20 | 1,7 / 8 " X 12 | G 1,1 / 4 " X 11 | O 222 | 27.5 | 20 | 65.5 | 50 | ||
1 JG- 24 | 1,7 / 8 " X 12 | G 1,1 / 2 " X 11 | O 224 | 27.5 | 21.5 | 64 | 55 | ||
