Kategória produktu: Adaptéry hydraulických tvaroviek JIC na pripojenie elektrónky k elektrónke
Norma produktu: ISO 8434-2, SAE J514.
Materiál: uhlíková oceľ, nehrdzavejúca oceľ alebo zliatina medi.
Koniec rúrky JIC k inému koncovému pripojeniu nasledovne: BSP Uzatváracie tesnenie typu E, G, H, tvarovky ISO 6149, tvarovky JIS B2351, tvarovky ISO 11926 a SAE J1926 ORB, tvarovky DIN 3852 a ISO 1179, tvarovky ISO 9974 atď.

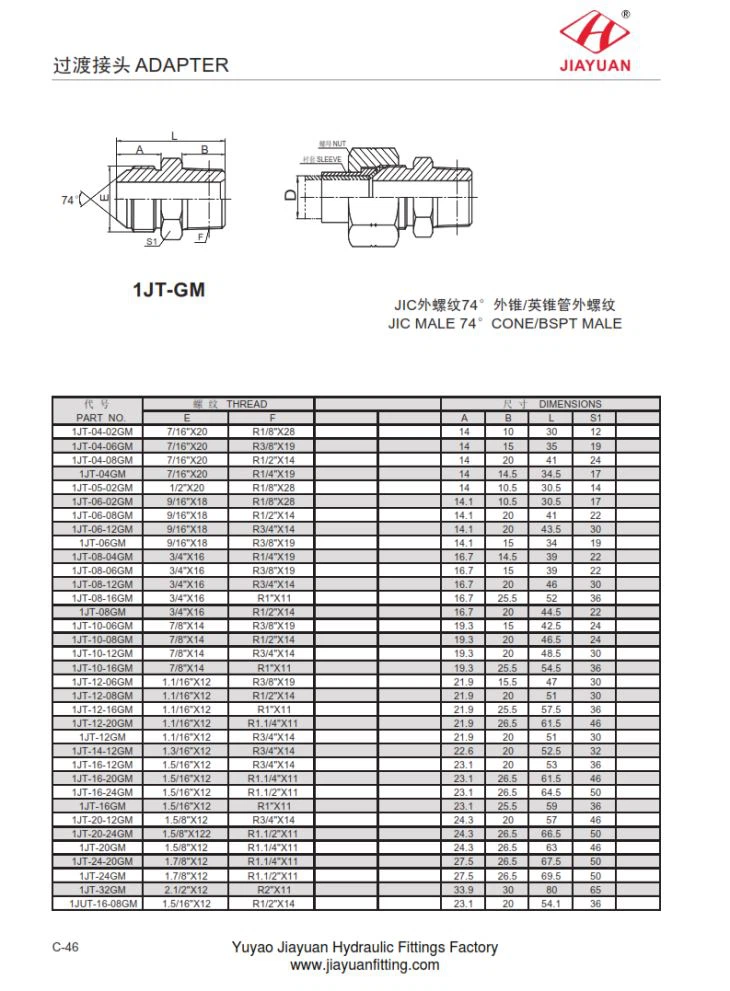

1JT-GM JIC MALE 74 ° KONE / BSPT MALE Rozmerová tabuľka takto:
PAR T NIE . | THREA D | ROZMER S | ||||
E | F |
| B | L | S 1 | |
1JT-04-02G M | 7/16 "X2 0 | R1 / 8 "X2 8 | 1 4 | 1 0 | 3 0 | 1 2 |
1JT-04-06G M | 7/16 "X2 0 | R3 / 8 "X1 9 | 1 4 | 1 5 | 3 5 | 1 9 |
1JT-04-08G M | 7/16 "X2 0 | R1 / 2 "X1 4 | 1 4 | 2 0 | 4 1 | 2 4 |
1JT-04G M | 7/16 "X2 0 | R1 / 4 "X1 9 | 1 4 | 14. 5 | 34. 5 | 1 7 |
1JT-05-02G M | 1/2 "X2 0 | R1 / 8 "X2 8 | 1 4 | 10. 5 | 30. 5 | 1 4 |
1JT-06-02G M | 9/16 "X1 8 | R1 / 8 "X2 8 | 14. 1 | 10. 5 | 30. 5 | 1 7 |
1JT-06-08G M | 9/16 "X1 8 | R1 / 2 "X1 4 | 14. 1 | 2 0 | 4 1 | 2 2 |
1JT-06-12G M | 9/16 "X1 8 | R3 / 4 "X14 | 14. 1 | 2 0 | 43. 5 | 3 0 |
1JT-06G M | 9/16 "X1 8 | R3 / 8 "X1 9 | 14. 1 | 1 5 | 3 4 | 1 9 |
1JT-08-04G M | 3/4 "X1 6 | R1 / 4 "X1 9 | 16. 7 | 14. 5 | 3 9 | 2 2 |
1JT-08-06G M | 3/4 "X1 6 | R3 / 8 "X1 9 | 16. 7 | 1 5 | 3 9 | 2 2 |
1JT-08-12G M | 3/4 "X1 6 | R3 / 4 "X14 | 16. 7 | 2 0 | 4 6 | 3 0 |
1JT-08-16G M | 3/4 "X1 6 | R1 "X1 1 | 16. 7 | 25. 5 | 5 2 | 3 6 |
1JT-08G M | 3/4 "X1 6 | R1 / 2 "X1 4 | 16. 7 | 2 0 | 44. 5 | 2 2 |
1JT-10-06G M | 7/8 "X1 4 | R3 / 8 "X1 9 | 19. 3 | 1 5 | 42. 5 | 2 4 |
1JT-10-08G M | 7/8 "X1 4 | R1 / 2 "X1 4 | 19. 3 | 2 0 | 46. 5 | 2 4 |
1JT-10-12G M | 7/8 "X1 4 | R3 / 4 "X14 | 19. 3 | 2 0 | 48. 5 | 3 0 |
1JT-10-16G M | 7/8 "X1 4 | R1 "X1 1 | 19. 3 | 25. 5 | 54. 5 | 3 6 |
1JT-12-06G M | 1,1 / 16 "X1 2 | R3 / 8 "X1 9 | 21. 9 | 15. 5 | 4 7 | 3 0 |
1JT-12-08G M | 1,1 / 16 "X1 2 | R1 / 2 "X1 4 | 21. 9 | 2 0 | 5 1 | 3 0 |
1JT-12-16G M | 1,1 / 16 "X1 2 | R1 "X1 1 | 21. 9 | 25. 5 | 57. 5 | 3 6 |
1JT-12-20G M | 1,1 / 16 "X1 2 | R1.1 / 4 "X1 1 | 21. 9 | 26. 5 | 61. 5 | 4 6 |
1JT-12G M | 1,1 / 16 "X1 2 | R3 / 4 "X14 | 21. 9 | 2 0 | 5 1 | 3 0 |
1JT-14-12G M | 1,3 / 16 "X1 2 | R3 / 4 "X14 | 22. 6 | 2 0 | 52. 5 | 3 2 |
1JT-16-12G M | 1,5 / 16 "X1 2 | R3 / 4 "X14 | 23. 1 | 2 0 | 5 3 | 3 6 |
1JT-16-20G M | 1,5 / 16 "X1 2 | R1.1 / 4 "X1 1 | 23. 1 | 26. 5 | 61. 5 | 4 6 |
1JT-16-24G M | 1,5 / 16 "X1 2 | R1.1 / 2 "X1 1 | 23. 1 | 26. 5 | 64. 5 | 5 0 |
1JT-16G M | 1,5 / 16 "X1 2 | R1 "X1 1 | 23. 1 | 25. 5 | 5 9 | 3 6 |
1JT-20-12G M | 1,5 / 8 "X1 2 | R3 / 4 "X14 | 24. 3 | 2 0 | 5 7 | 4 6 |
1JT-20-24G M | 1,5 / 8 "X12 2 | R1.1 / 2 "X1 1 | 24. 3 | 26. 5 | 66. 5 | 5 0 |
1JT-20G M | 1,5 / 8 "X1 2 | R1.1 / 4 "X1 1 | 24. 3 | 26. 5 | 6 3 | 4 6 |
1JT-24-20G M | 1,7 / 8 "X1 2 | R1.1 / 4 "X1 1 | 27. 5 | 26. 5 | 67. 5 | 5 0 |
1JT-24G M | 1,7 / 8 "X1 2 | R1.1 / 2 "X1 1 | 27. 5 | 26. 5 | 69. 5 | 5 0 |
1JT-32G M | 2,1 / 2 "X1 2 | R2 "X1 1 | 33. 9 | 3 0 | 8 0 | 6 5 |
1JUT-16-08G M | 1,5 / 16 "X1 2 | R1 / 2 "X1 4 | 23. 1 | 2 0 | 54. 1 | 3 6 |
